Ideal Logic Plus Combi 24 30 35 Boiler Ignition Lead 175598

Product Overview

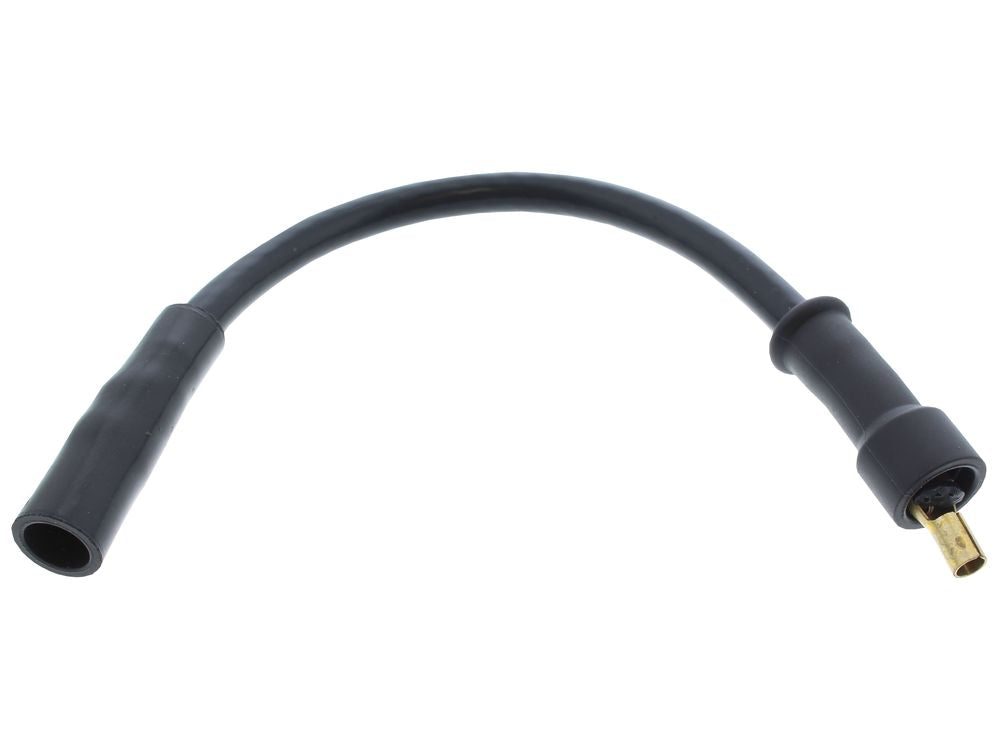

The Ideal Logic Plus Boiler Ignition Lead (Part Number: 175598) is an electrical ignition component designed for selected Ideal heating systems.

The ignition lead forms part of the boiler's electronic ignition system, providing an electrical connection between the spark generator and ignition electrode.

It carries the high-voltage electrical pulses required to produce a spark at the ignition electrode, allowing the boiler's burner to ignite during its normal operating sequence.

Correct ignition lead operation is important for reliable burner ignition and safe boiler operation.

ℹ️ Product Condition Options:

This part may be available in New or Refurbished condition. Please select your desired option from the dropdown menu above. Refurbished ignition leads should be professionally inspected and electrically tested to confirm insulation integrity and correct operation before installation.

Technical Insight & Common Failure Symptoms

The ignition lead is a high-voltage electrical component that connects the boiler's ignition system to the ignition electrode.

During the ignition sequence, the spark generator produces electrical pulses that travel through the ignition lead to the electrode, creating the spark required to ignite the gas-air mixture at the burner.

Over time, ignition lead performance may be affected by insulation deterioration, damaged connectors, heat exposure or electrical faults.

Possible symptoms that may indicate an ignition lead or associated component problem include:

• Boiler failing to ignite or fire correctly.

• Intermittent ignition operation.

• Weak or absent ignition spark.

• Boiler failing to complete its normal ignition sequence.

• Ignition-related safety lockouts.

• Visible cracking or deterioration of the lead insulation.

• Loose, damaged or corroded electrical connections.

• Electrical arcing caused by damaged insulation.

These symptoms do not necessarily confirm a faulty ignition lead, as similar problems may result from ignition electrodes, spark generators, electrical connections, gas supply issues or other boiler components. Correct professional diagnosis should be carried out before replacement.

Compatibility

This part (MPN: 175598) is associated with selected Ideal Logic Plus Combi 24, 30 and 35 boiler systems.

Please verify the exact boiler model, GC number, ignition lead reference and connection arrangement against the manufacturer's technical documentation before ordering to ensure correct fitment.

Safety Advice

Boiler ignition leads are high-voltage electrical components within the appliance's gas ignition system. Inspection, removal and installation must only be carried out by a Gas Safe registered engineer who is suitably qualified for the appliance and work being undertaken.

Always isolate the appliance's electrical supply before carrying out any work and follow the manufacturer's installation and servicing instructions. Ensure that the ignition lead is correctly connected, securely routed and adequately insulated. All required ignition, combustion and operational safety checks must be completed before the boiler is returned to service.
