Ideal Evomax 30 40 60 80 100 120 150 Flame Detection Electrode 176206
1 left
FROM £24.99

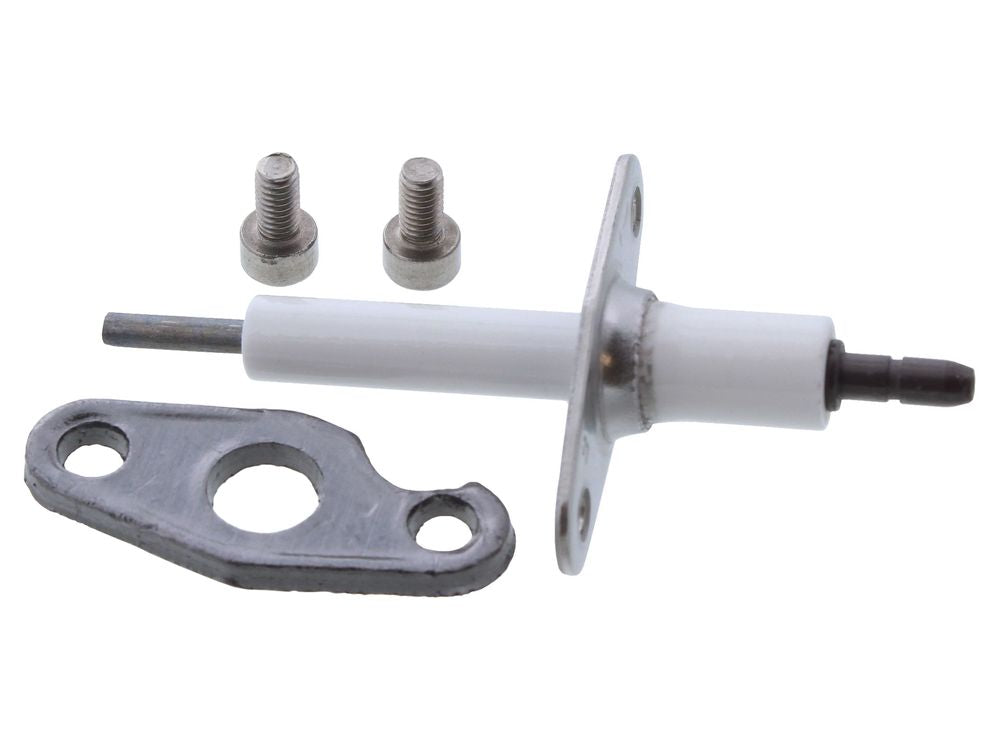

Ideal Evomax 30 40 60 80 100 120 150 Boiler Flame Detection Electrode 176206
Product Overview
The Ideal Evomax Boiler Flame Detection Electrode (Part Number: 176206) is a flame-sensing component intended for selected Ideal commercial heating systems.
The flame detection electrode forms part of the boiler's burner safety and flame supervision system. It detects the presence of a burner flame and provides a signal to the electronic control system.
This allows the boiler to monitor whether a flame has been established during burner operation. Reliable flame detection is important for the safe operation of the appliance.
ℹ️ Product Condition Options:
This part may be available in New or Refurbished condition. Please select your desired option from the dropdown menu above. Refurbished electrodes should be professionally inspected and tested to confirm their condition and correct operation before installation.
Technical Insight & Common Failure Symptoms
The flame detection electrode works through flame ionisation, a process in which a small electrical current passes through the established burner flame. The boiler's flame supervision circuit uses this signal to confirm flame presence.
If the flame signal is not detected correctly, the boiler's safety controls may interrupt burner operation.
Electrode performance may be affected by contamination, deterioration of the electrode surface, damaged insulation or poor electrical connections.
Possible symptoms that may indicate a flame detection electrode or associated ignition system problem include:
-
Boiler igniting but shutting down shortly afterwards.
-
Burner flame not being recognised by the control system.
-
Intermittent flame detection.
-
Boiler entering a flame failure or ignition-related lockout.
-
Burner failing to maintain operation despite ignition occurring.
-
Visible contamination or deterioration of the electrode.
-
Cracked ceramic insulation or damaged electrical connections.
These symptoms do not necessarily confirm a faulty flame detection electrode, as similar problems may result from gas supply issues, burner condition, electrical connections, earthing faults or other combustion components. Correct professional diagnosis should be carried out before replacement.
Compatibility
This part (MPN: 176206) is associated with selected Ideal Evomax boiler systems.
Please verify the exact boiler model, GC number, electrode reference, physical dimensions and connection arrangement against the manufacturer's technical documentation before ordering to ensure correct fitment.
Safety Advice
Boiler flame detection electrodes are safety-critical components within the appliance's combustion and flame supervision system. Inspection, removal and installation must only be carried out by a Gas Safe registered engineer who is suitably qualified for the appliance and commercial boiler work being undertaken.
Always isolate the appliance's electrical and gas supplies before carrying out any work and follow the manufacturer's installation and servicing instructions. The electrode must be correctly positioned and connected, and any disturbed combustion chamber seals must be checked. All required flame detection, burner operation, combustion and safety checks must be completed before the boiler is returned to service.
This part fits the following boilers:
Fits Appliance(s)
GC No.
Ideal Evomax 100
41-750-37
Ideal Evomax 120
41-750-38
Ideal Evomax 150
41-750-39
Ideal Evomax 30 - 150 NG, 30 - 80 LPG
41-750-33
Ideal Evomax 40
41-750-34
Ideal Evomax 40P
41-750-41
Ideal Evomax 60
41-750-35
Ideal Evomax 60P
41-750-42
Ideal Evomax 80
41-750-36
Ideal Evomax 80P
41-750-43
Ideal Instinct Heat 100
HEAT-100
Ideal Instinct Heat 120
HEAT-120
Ideal Instinct Heat 150
HEAT-150
Ideal Instinct Heat 40
HEAT-40
Ideal Instinct Heat 40P
HEAT-40P
Ideal Instinct Heat 60
HEAT-60
Ideal Instinct Heat 60P
HEAT-60P
Ideal Instinct Heat 80
HEAT-80
Ideal Instinct Heat 80P
HEAT-80P
Ideal Keston Heat 45
41-930-40
Ideal Keston Heat 55
41-930-41
