Heatline Compact C24 C28 Boiler Diverter Valve Service Repair Kit with Actuator Motor 3003200039 & 3003202082

Product Overview

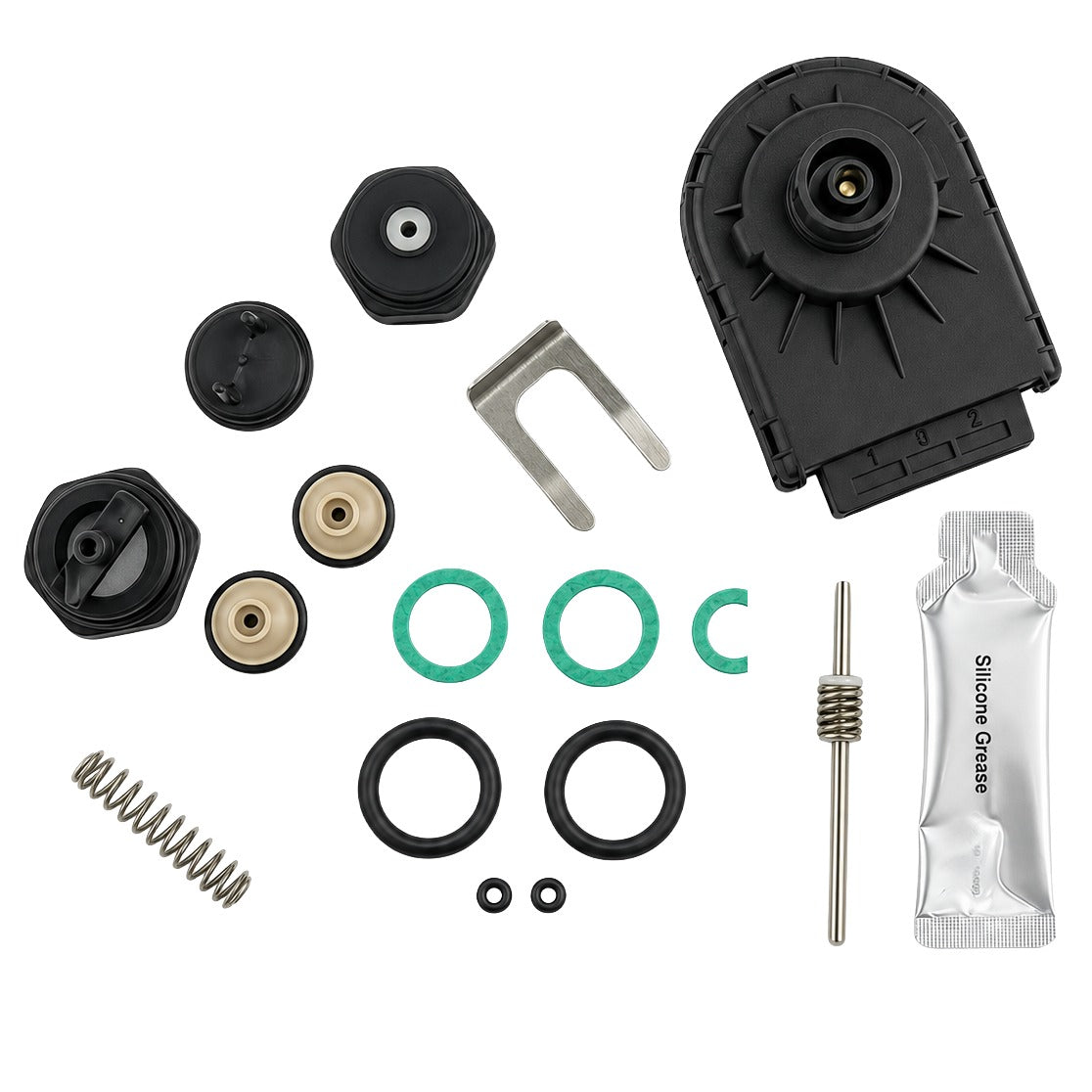

The Heatline Compact Diverter Valve Service Repair Kit with Actuator Motor is a replacement component kit designed for selected Heatline heating systems.

The kit combines diverter valve servicing components with an actuator motor, allowing the associated valve mechanism and its motorised operation to be serviced.

The diverter valve directs heated water between the central heating and domestic hot water circuits according to the boiler's operating demand. The actuator motor operates the valve mechanism to support switching between these functions.

ℹ️ Product Condition Options:

This product may be available in New or Refurbished condition. Please select your desired option from the dropdown menu above. Refurbished components should be professionally inspected and tested to confirm correct operation before installation.

Technical Insight & Common Failure Symptoms

The three-way diverter valve mechanism controls the direction of heated water within the boiler. The actuator motor provides the movement required to operate the valve in response to the boiler's control system.

Over time, the valve mechanism may be affected by worn seals, mechanical deterioration, sticking components or actuator motor faults.

Possible symptoms that may indicate a diverter valve or actuator problem include:

• Central heating working but domestic hot water not heating correctly.

• Domestic hot water working while central heating fails to operate correctly.

• Intermittent heating or hot water operation.

• Diverter valve failing to switch between heating and hot water positions.

• Actuator motor failing to operate correctly.

• Valve mechanism sticking or failing to move smoothly.

• Water leakage around the diverter valve assembly.

• Heating performance affected when switching between operating modes.

These symptoms do not necessarily confirm a faulty diverter valve or actuator motor, as similar problems may result from electrical controls, sensors, circulation issues or other hydraulic components. Correct professional diagnosis should be carried out before replacement.

Compatibility

This repair kit is associated with selected Heatline Compact C24 and C28 boiler systems.

The associated component references include D003200039 / 3003200039 for the diverter valve actuator motor and D003202082 / 3003202082 for the valve spindle and bush repair components.

Please verify the original part numbers, boiler model and supplied kit contents against the manufacturer's technical documentation before ordering to ensure correct fitment.

Safety Advice

Boiler diverter valve repair kits, actuator motors and associated hydraulic components should only be inspected, removed or installed by a suitably qualified and competent heating engineer.

Always isolate the appliance's electrical supply and allow the heating system to cool before carrying out any work. Where servicing involves opening the hydraulic circuit, the system must be safely isolated and depressurised. Follow the manufacturer's servicing instructions and complete all required electrical, pressure, leakage and operational safety checks before returning the boiler to service.
