CHAFFOTEAUX 61002653 AIR SEPARATOR HEAD ASSEMBLY 1610011
1 left
FROM £29.99

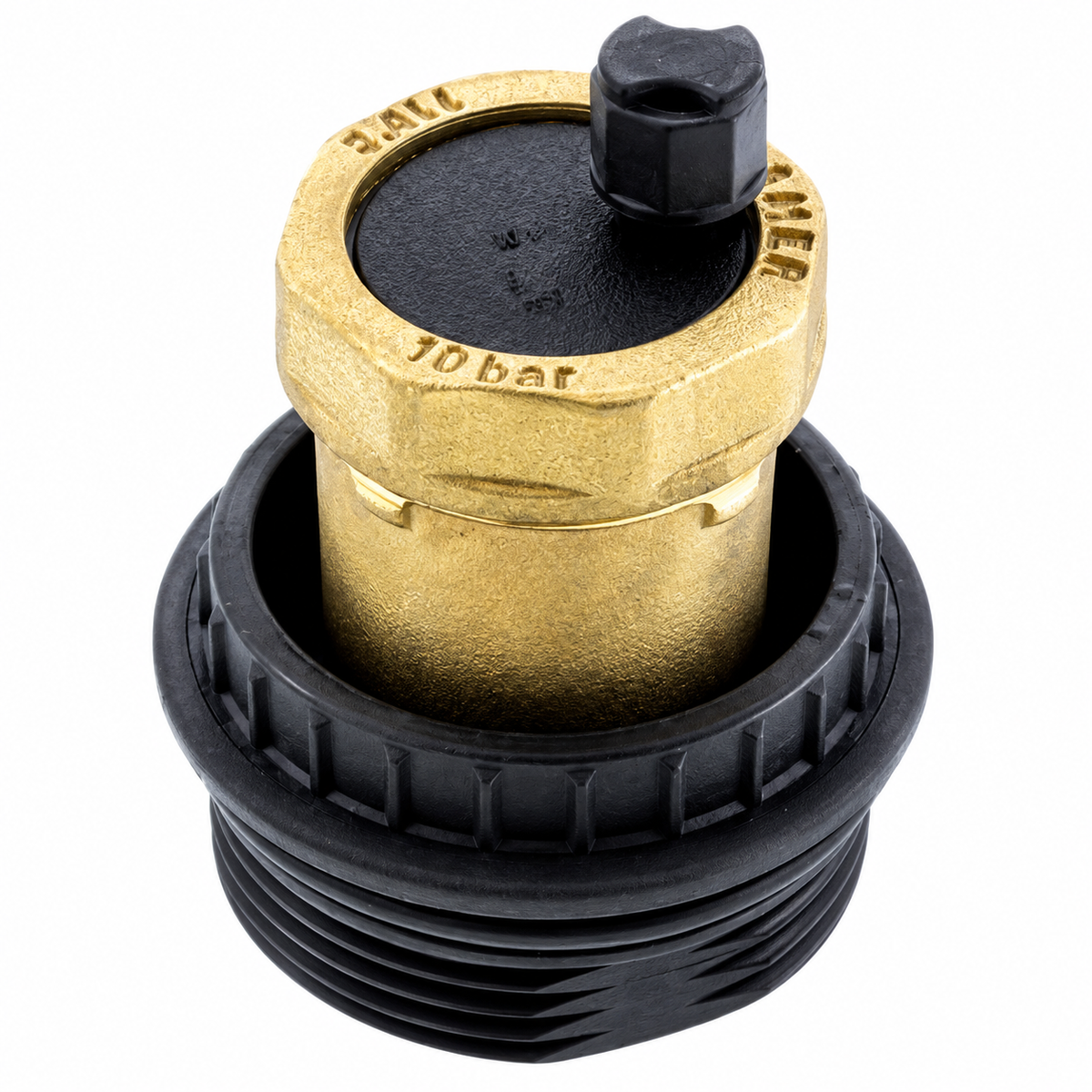

Chaffoteaux Boiler Air Separator Head Assembly 61002653
Product Overview
The Chaffoteaux Boiler Air Separator Head Assembly (Part Number: 61002653) is a hydraulic air-separation component designed for selected Chaffoteaux heating systems.
The assembly forms part of the boiler's hydraulic system, helping manage accumulated air within the circulating heating water.
The air separator head is associated with the boiler's air-removal arrangement, supporting the separation and release of trapped air from the heating circuit.
Correct operation of the air-separation components is important for maintaining reliable water circulation and reducing air-related operating problems.
ℹ️ Product Condition Options:
This part may be available in New or Refurbished condition. Please select your desired option from the dropdown menu above. Refurbished components should be professionally inspected and tested for correct operation and leakage before installation.
Technical Insight & Common Failure Symptoms
The air separator head assembly forms part of the boiler's hydraulic air-management system.
Air can accumulate within central heating circuits during filling, maintenance or normal operation. Air-separation components help remove trapped air, supporting water circulation through the heating system.
Over time, the assembly may be affected by internal contamination, deterioration of sealing components, mechanical wear or leakage.
Possible symptoms that may indicate an air separator or associated hydraulic system problem include:
-
Air remaining trapped within the heating circuit.
-
Gurgling or bubbling noises during boiler operation.
-
Water leakage around the air separator assembly.
-
Air-release components failing to operate correctly.
-
Reduced water circulation associated with airlocks.
-
Visible corrosion or deterioration around the assembly.
-
Damage to associated hydraulic connections or seals.
These symptoms do not necessarily confirm a faulty air separator head, as similar problems may result from system leaks, circulation faults, incorrect filling procedures or other hydraulic components. Correct professional diagnosis should be carried out before replacement.
Compatibility
This part (MPN: 61002653) is associated with selected Chaffoteaux Britony System and Centora boiler systems.
Please verify the exact boiler model, GC number, part number and hydraulic connection arrangement against the manufacturer's technical documentation before ordering to ensure correct fitment.
Safety Advice
Boiler air separator assemblies and associated hydraulic components should only be inspected, removed or installed by a suitably qualified and competent heating engineer.
Always isolate the appliance and allow the heating system to cool before carrying out any work. The relevant heating circuit must be safely isolated and depressurised before removing the assembly. Follow the manufacturer's servicing instructions and complete all required pressure, leakage and operational safety checks before returning the boiler to service.
This part fits the following boilers:
Fits Appliance(s)
GC No.
Chaffoteaux BRITONNY SYSTEM 11 100
41-980-09
Chaffoteaux BRITONY 100 COMBI NG
47-980-13
Chaffoteaux BRITONY 40 PLUS SYSTEM NG
47-980-12
Chaffoteaux BRITONY 60 PLUS SYSTEM NG
41-980-17
Chaffoteaux BRITONY 80 COMBI NG
41-980-16
Chaffoteaux BRITONY II PLUS 100 SYSTEM NG
41-980-02
Chaffoteaux BRITONY II PLUS 80 SYSTEM NG
41-980-04
Chaffoteaux BRITONY PLUS 100 SYSTEM NG
41-980-06
Chaffoteaux BRITONY SYSTEM 11 80
41-980-15
Chaffoteaux BRITONY SYSTEM 40
41-980-25
Chaffoteaux BRITONY SYSTEM 60
47-980-21
Chaffoteaux CENTORA GREEN 24
47-980-24
Chaffoteaux CENTORA GREEN 24 COMBI NG
41-980-12
Chaffoteaux CENTORA GREEN 24 SYSTEM NG
41-980-31
Chaffoteaux CENTORA GREEN 30 COMBI NG
Chaffoteaux CENTORA GREEN 30 SYSTEM NG
Chaffoteaux GENESIS 80 COMBI NG
Chaffoteaux GENESIS 96 COMBI NG
