Baxi Potterton Main Boiler Service Kit 7224763 5118381 248733 5114725
IN STOCK
FROM £78.99
Baxi Potterton Main Boiler Service Kit 7224763 5118381 248733 5114725
Product Overview
The Baxi Potterton Main Boiler Service Kit (7224763, 5118381, 248733 & 5114725) is a replacement hydraulic and service component kit designed for use within selected Baxi, Potterton and Main heating systems.
This kit contains commonly replaced boiler components, including a 3-way diverter valve assembly, actuator motor, and NTC temperature sensor, which are important for maintaining correct heating and hot water operation. These components work together to control water flow direction and monitor system temperature, helping support reliable boiler performance.
Replacing worn hydraulic and control components during servicing can help restore correct boiler operation and reduce issues related to heating, hot water, and temperature monitoring.
ℹ️ Product Condition Options:
This part may be available in New or Refurbished condition. Please check the available options from the dropdown menu.
Technical Insight & Common Failure Symptoms
The 3-way diverter valve controls the flow of heated water between the central heating circuit and domestic hot water circuit. The actuator motor operates the valve mechanism, allowing the boiler to switch between heating and hot water demand. The NTC sensor monitors water temperature and provides temperature information to the boiler control system.
Over time, hydraulic components can experience wear, internal scaling, debris build-up, or electrical failure, affecting boiler performance.
Typical symptoms linked to faulty components include:
- No hot water while heating works normally
- Heating operating when hot water is requested
- Intermittent heating or hot water operation
- Incorrect temperature readings
- Boiler failing to respond correctly to demand
- Diverter valve sticking or failing to move correctly
- Temperature-related fault codes
Replacing these service components may help restore correct hydraulic operation and reliable boiler performance.

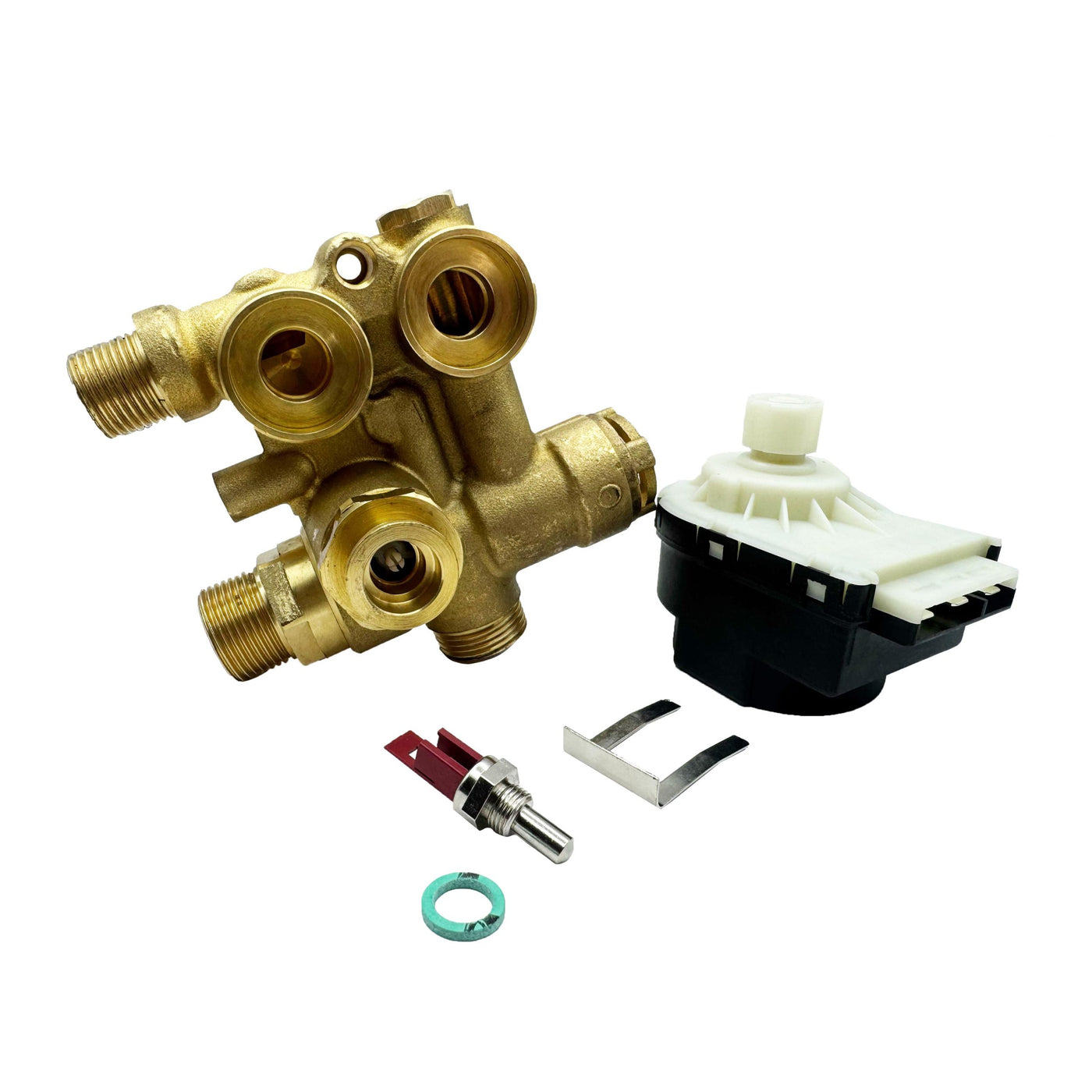

Kit Contents
The kit includes:
- 7224763 – 3-Way Valve Assembly with Bypass
- 5118381 – Previous part reference / superseded 3-Way Valve Assembly code
- 248733 – Actuator Motor
- 5114725 – NTC Temperature Sensor
Please refer to the product images for the exact contents supplied.
Compatibility
This part is designed for selected models within the Baxi, Potterton and Main ranges.
Please strictly verify the manufacturer part numbers against your boiler's technical manual, exploded parts diagram, or existing components before ordering to guarantee correct fitment.
Safety Advice
Boiler hydraulic and electrical components involve water pressure, electrical connections, and internal heating system assemblies. Installation and servicing must be carried out by a Gas Safe registered engineer in accordance with current regulations and manufacturer instructions.
This part fits the following boilers:
Fits Appliance(s)
GC No.
Baxi Duo Tec 24 HE
47-075-23
Baxi Duo Tec 24 HE A (After Serial No. BTG0815 Issue 9)
47-075-35
Baxi Duo Tec 24 HE A (Before Serial No. BTG0815 Issue 9)
47-075-35 BEFORE
Baxi Duo Tec 28 HE
47-075-25
Baxi Duo Tec 28 HE A (After Serial No.CAC0929 Issue 9)
47-075-36
Baxi Duo Tec 28 HE A (Before Serial No.CAC0929 Issue 9)
47-075-36 BEFORE
Baxi Duo Tec 33 HE
47-075-24
Baxi Duo Tec 33 HE A (After Serial No.BTH1112 Issue 9)
47-075-37
Baxi Duo Tec 33 HE A (Before Serial No.BTH1112 Issue 8)
47-075-37 BEFORE
Baxi Duo Tec 40 HE
47-075-26
Baxi Duo Tec 40 HE A (Issue 8)
47-075-38
Baxi Combi 24 HE
47-075-20
Baxi Combi 28 HE
47-075-21
Baxi Combi 33 HE
47-075-22
Baxi Platinum Combi 24 HE A (After Serial No. BMY0815 Issue 6)
47-075-31
Baxi Platinum Combi 24 HE A (Before Serial No. BMY0815 Issue 6)
47-075-31 BEFORE
Baxi Platinum Combi 28 HE A (After Serial No. BNC0932 Issue 7)
47-075-32
Baxi Platinum Combi 28 HE A (Before Serial No. BNC0932 Issue 7)
47-075-32 BEFORE
Baxi Platinum Combi 33 HE
47-075-29
Baxi Platinum Combi 33 HE A (After Serial No. BNE1112 Issue 5)
47-075-33
Baxi Platinum Combi 33 HE A (Before Serial No. BNE1112 Issue 6)
47-075-33 BEFORE
Baxi Platinum Combi 40 HE
47-075-30
Baxi Platinum Combi 40 HE A (Issue 4)
47-075-34
Main Combi 25 Eco
47-467-01
Main Combi 30 Eco
47-467-03
Potterton Gold 24 HE A Combi (After Serial No BMX0815 & GNH0815)
47-393-18
Potterton Gold 24 HE A Combi (Before Serial No BMX0815 & GNH0815)
47-393-18 BEFORE
Potterton Gold 28 HEA Combi (After Serial No BNF0932 & GNK0932)
47-393-19
Potterton Gold 28 HEA Combi (Before Serial No BNF0932 & GNK0932)
47-393-19 BEFORE
Potterton Gold 33 HE A Combi (After Serial No GNL1112)
47-393-20
Potterton Gold 33 HE A Combi (Before Serial No GNL1112)
47-393-20 BEFORE
